Tumor-Normal Classification Task Example

This tutorial shows how to run the tumor_normal evaluation task. It uses HCC-2T as the example dataset.

Data Source And Assumptions

The HCC example is based on data from GSA-Human accession HRA000437. Raw FASTQ files are processed through our standard upstream workflow first, and the resulting benchmark-ready package is then used as the input to ST-CNVBench.

In this tutorial, we assume:

  • your data.yaml contains one dataset entry with dataset_id: HCC-2T
  • the standardized input package is already available for that dataset
  • tumor_normal_mode is set to de_novo
  • raw.tumor_normal_gt is set to the real annotation ground truth used for evaluation
  • your models.yaml already configures the benchmark methods that support de_novo tumor-normal inference
  • your eval.yaml follows the same parameter structure as configs/templates/eval.template.yaml

For detailed config requirements, see Dataset Preparation, Model Run, and Evaluation.

Step 1: Prepare Data

Run:

st-cnvbench --steps prep \
  --data-config data.yaml \
  --prep-ids HCC-2T

Check the prepared dataset under:

<output.root>/

Expected standardized outputs include:

  • filtered_feature_bc_matrix/
  • filtered_feature_bc_matrix.h5ad
  • spatial/tissue_positions.csv
  • metadata_HCC-2T_tumor_normal.tsv or the corresponding standardized tumor-normal annotation file

Step 2: Run Models

Run all benchmark methods that support de_novo tumor-normal inference:

st-cnvbench --steps run \
  --data-config data.yaml \
  --model-config models.yaml \
  --prep-ids HCC-2T \
  --exec-mode conda

Check raw model outputs under:

<results_dir>/HCC-2T/<model_name>/

Step 3: Evaluate Tumor-Normal Classification

Run tumor_normal evaluation across all configured methods that support this task:

st-cnvbench --steps eval \
  --data-config data.yaml \
  --eval-config eval.yaml \
  --prep-ids HCC-2T \
  --eval-tasks tumor_normal

Check evaluation outputs under:

<eval_dir>/HCC-2T/tumor_normal/

Typical outputs include:

  • aligned_spot_predictions.tsv
  • detection_metrics_summary.csv
  • tumor_normal_prediction_comparison.png
  • tumor_normal_metrics_summary.pdf
  • tumor_normal_confusion_matrices.pdf

Example Results

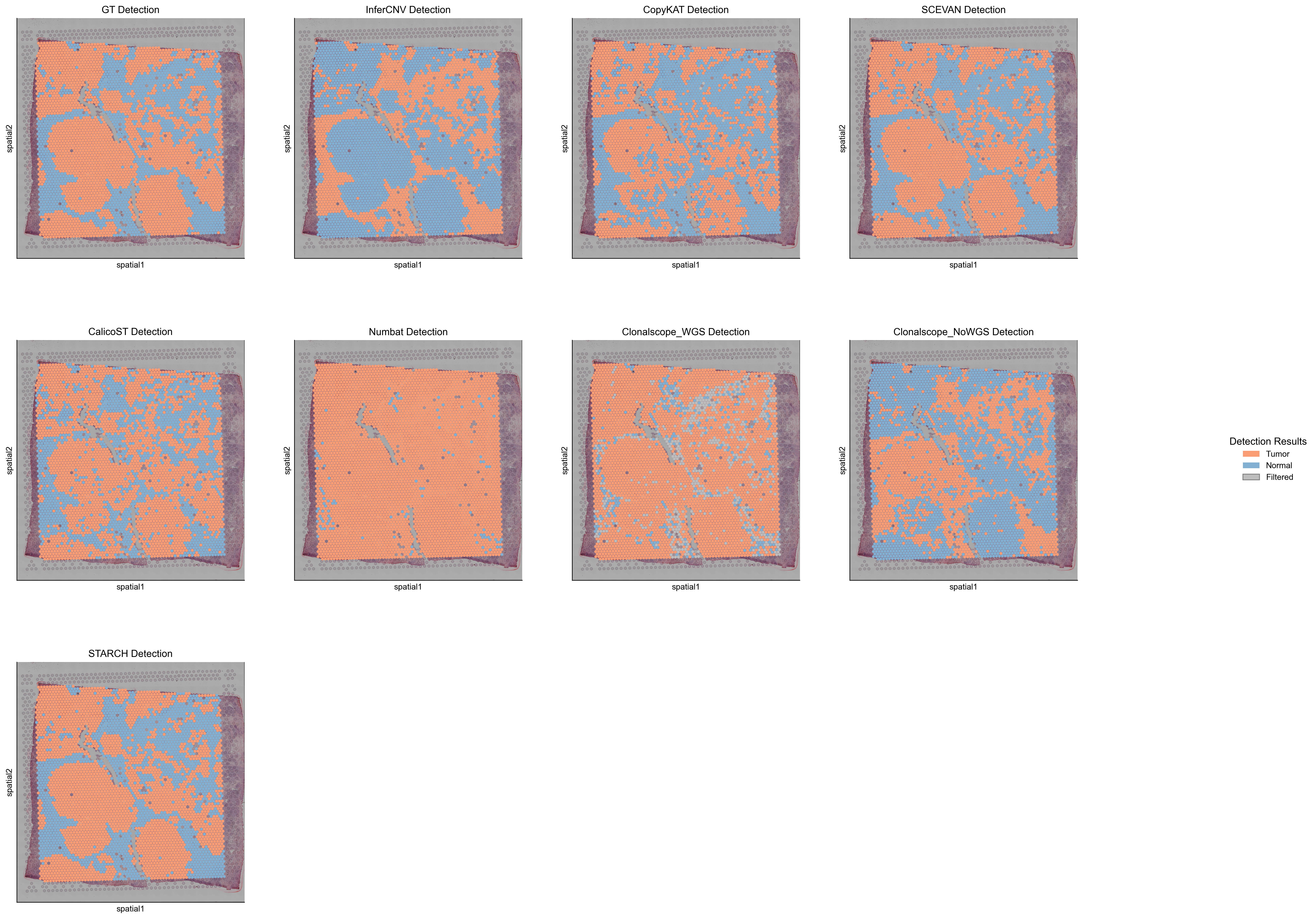

Spatial Prediction Comparison

This figure shows the tumor-normal spatial prediction maps across methods.

Tumor-normal spatial comparison across methods

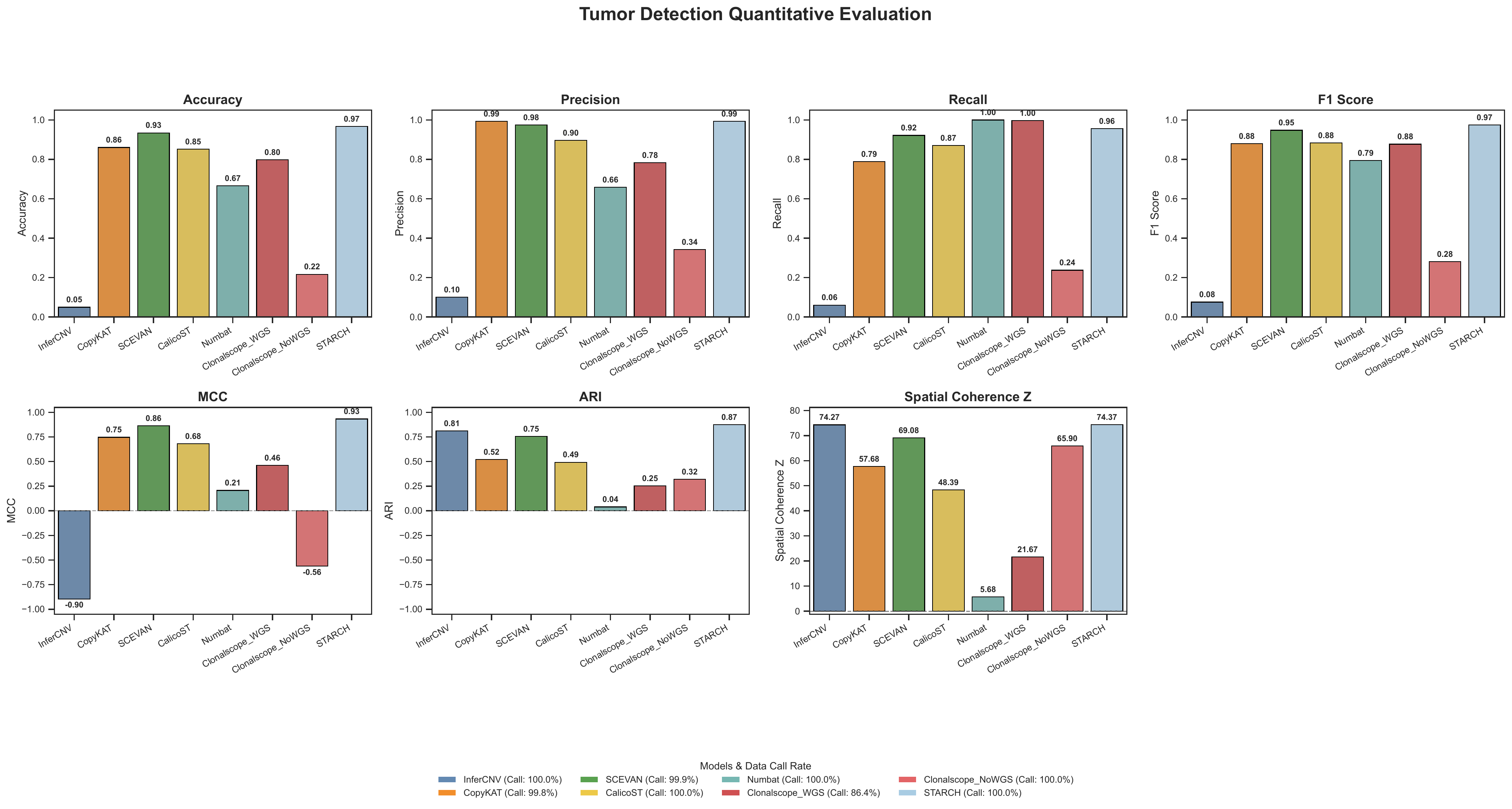

Metrics Summary

This figure summarizes the main tumor-normal classification metrics across methods.

Tumor-normal metrics summary across methods

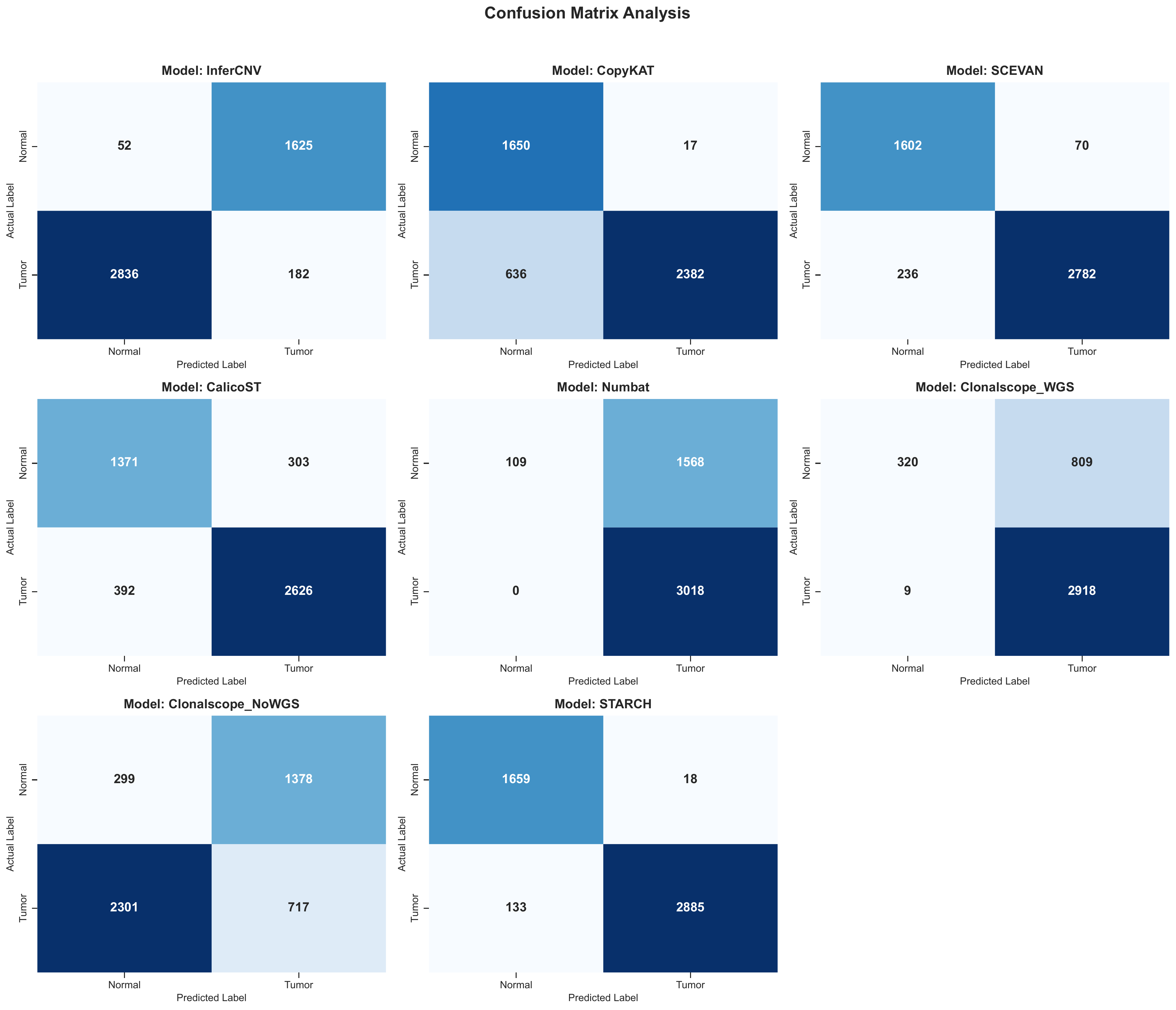

Confusion Matrices

This figure shows the confusion-matrix comparison across methods.

Tumor-normal confusion matrices across methods
